QC Dimensional Inspection Service

Our Services

First Article Inspection/ In-process Inspection

  • Dimensional Measurement

  • GD&T Verification/ Feature Location and True Position Analysis

  • Surface finish/ Roughness check

  • Visual and Cosmetic Inspection

  • Critical Feature Monitoring

  • Lot Traceability

Report Generation

  • Ballooned Drawing

  • Detailed Dimensional Report with automatic PASS/ FAIL Flagging

  • AS9102 First Article Inspection Report

  • Customized Report per Customer Requirements

  • Digital PDF and/or Hard Copy Reports Provided per Customer Requirements

Request quote

Equipment

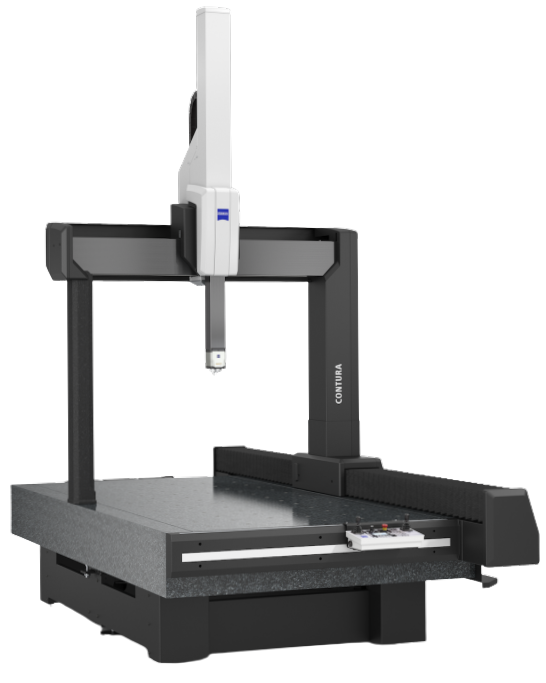

CMM - Zeiss Contura 6206

Equipped for high-precision dimensional measurement in aerospace, automotive, medical, and general manufacturing industries

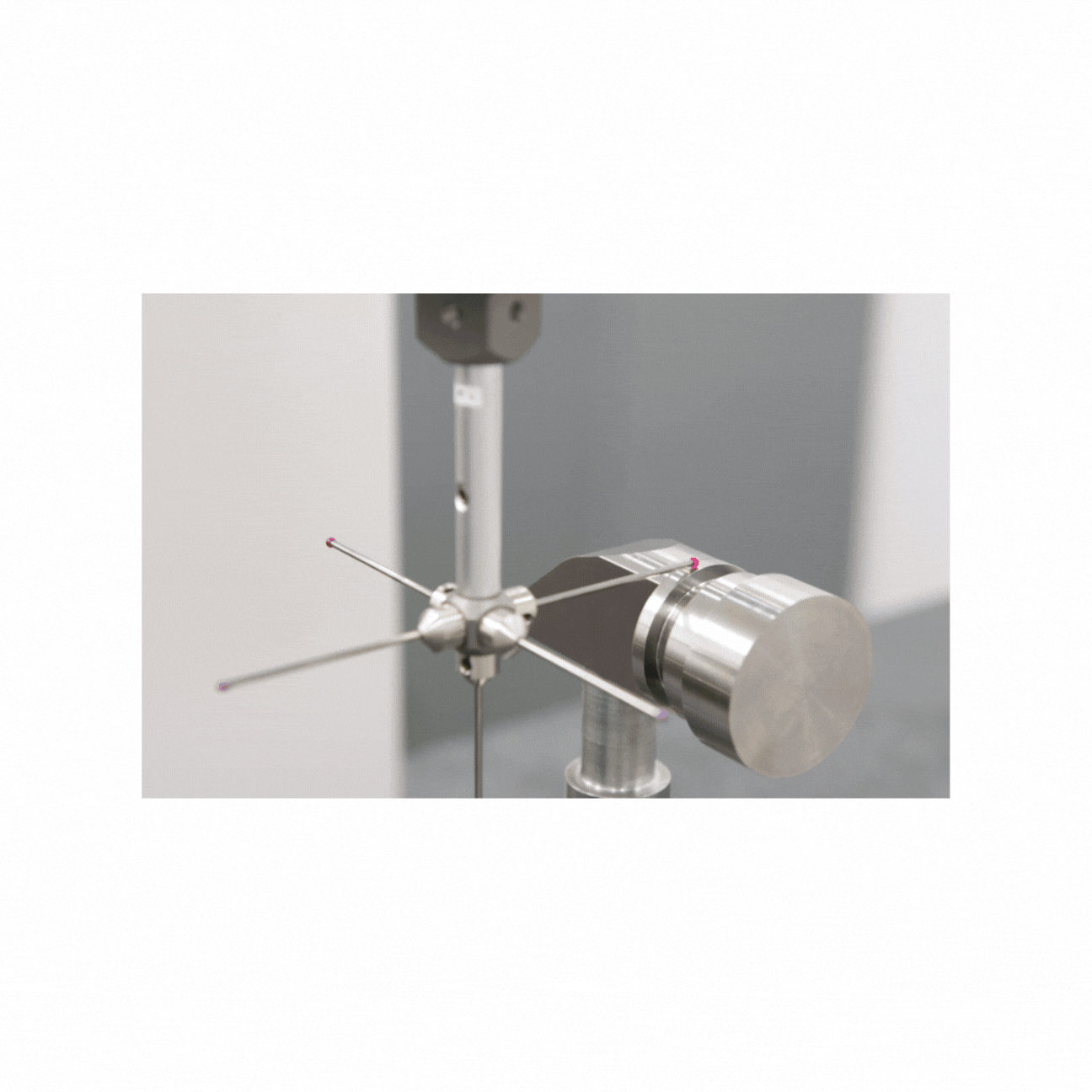

Probe System:

  • VAST-XTG-D1: High-resolution scanning

  • RDS-D-CAA: Flexible angle access

Working Range: 35”(X) x 70”(Y) x 31”(Z)

Ideal for:

  • Small to large-sized workpieces

  • Complex geometries requiring multi-angle access

  • High-accuracy dimensional inspection

OPTICAL CMM - Nikon VMZ-R6555

High-precision optical system, equipped with advanced TZ vision head is the best for capturing high-resolution measurements without touching the part, still ensuring accuracy and repeatability

Probe System:

  • TZ Type Head

Working Range: 25”(X) x 21”(Y) x 8”(Z)

Ideal for:

  • Micro to medium-sized workpieces with complex details

  • Non-contact inspection with delicate materials

  • PCB Board, semiconductors, medical device, plastic injection molded components and more

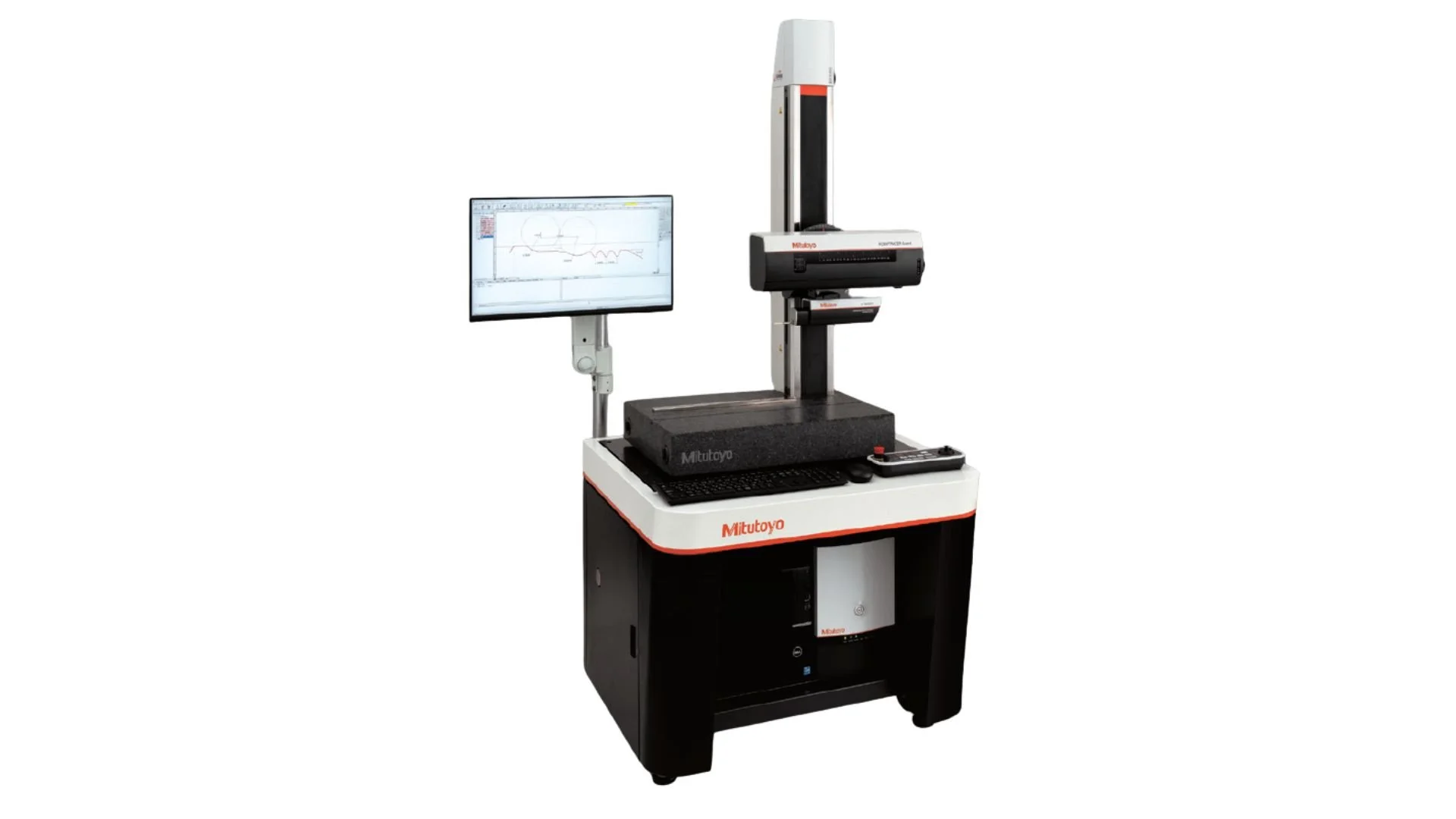

FORMTRACER - Mitutoyo C3000/C3200

Measurement Capability:

  • Contour and form measurement

  • Surface Roughness/ Surface finish

Probe system: Dual detector system for form and roughness

Ideal for:

  • Super small to medium-seized workpieces

  • Internal grooves, bores, and radii

  • Detailed form and roughness inspection
